Eureka Forbes Ultraviolet (UV) Water Sterilizer

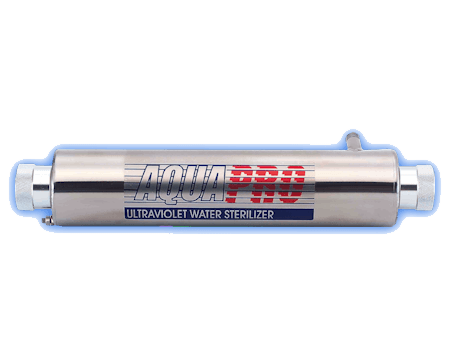

Ultraviolet Water Sterilizer ( 1-2- GPM )

Dimension LxWxD (mm) : 278X80X80

Electrical Volts : 110/220V / 50/60HZ

Flow Rate : 2GPM

In/out Port : 1/4"

UV Lamp (PC) : 1

Quartz Sleeve (PC) : 1

Lamp Failure Device : YES

Ambient Temperature : 2-40oC(36-104oF)

Lamp Watts : 14W

Chamber : SS304

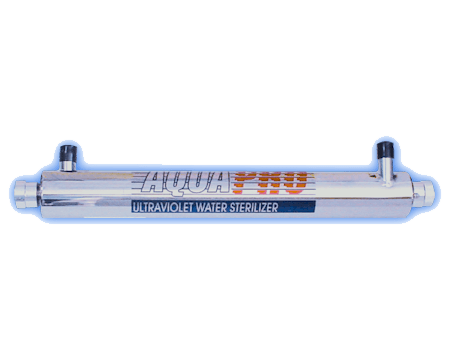

Ultraviolet Water Sterilizer ( 6 GPM )

Dimension LxWxD (mm) : 560X80X80 (UV6GPM)

Electrical Volts : 110/220V / 50/60HZ

Flow Rate : 6GPM

In/out Port : 3/4"

UV Lamp (PC) : 1

Quartz Sleeve (PC) : 1

Lamp Failure Device : YES

Ambient Temperature : 2-40oC(36-104oF) )

Lamp Watts : 24W

Chamber : SS304

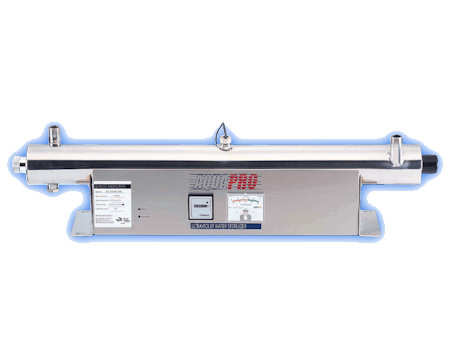

Ultraviolet water Sterilizer ( 12 GPM-HTM )

Dimension LxWxD (mm) : 900X190X160 (UV24GPM-H) (UV24GPM-H

Electrical Volts : 110/220V / 50/60HZ

Flow Rate : 12GPM

In/out Port : 3/4"

UV Lamp (PC) : 1

Quartz Sleeve (PC) : 1

Lamp Failure Device : YES

Ambient Temperature : 2-40oC(36-104oF) )

Lamp Watts : 40W

Chamber : SS304

Accumulated Timer : UV12GPM-HT, HTM

UV Light monitor : UV12GPM-HTM

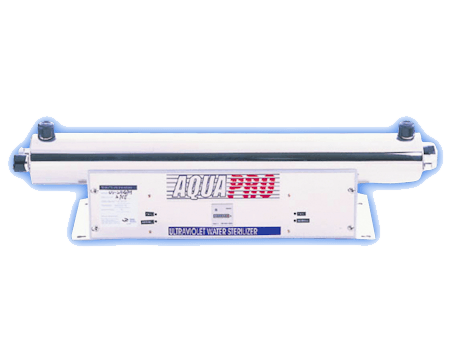

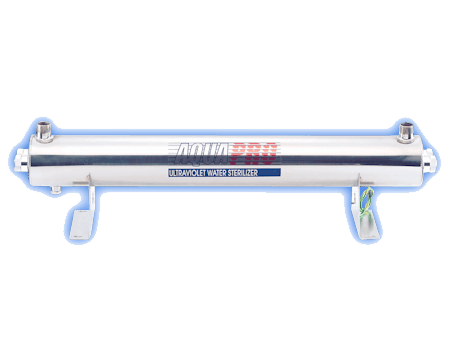

Ultraviolet water Sterilizer ( 24 GPM-H )

Dimension LxWxD (mm) : 900X190X160 (UV24GPM-H) (UV24GPM-H

Electrical Volts : 110/220V / 50/60HZ

Flow Rate : 24GPM

In/out Port : 1"

UV Lamp (PC) : 2

Quartz Sleeve (PC) : 2

Lamp Failure Device : YES

Ambient Temperature : 2-40oC(36-104oF) )

Lamp Watts : 40Wx2

Chamber : SS304

Accumulated Timer : UV24GPM-HT, HTM

UV Light monitor : UV24GPM-HTM

Ultraviolet water Sterilizer ( 24 GPM-HTM )

Dimension LxWxD (mm) : 900X240X160 (UV24GPM-, HTM)

Electrical Volts : 110/220V / 50/60HZ

Flow Rate : 24GPM

In/out Port : 1"

UV Lamp (PC) : 2

Quartz Sleeve (PC) : 2

Lamp Failure Device : YES

Ambient Temperature : 2-40oC(36-104oF) )

Lamp Watts : 40Wx2

Chamber : SS304

Accumulated Timer : UV24GPM-HT, HTM

UV Light monitor : UV24GPM-HTM

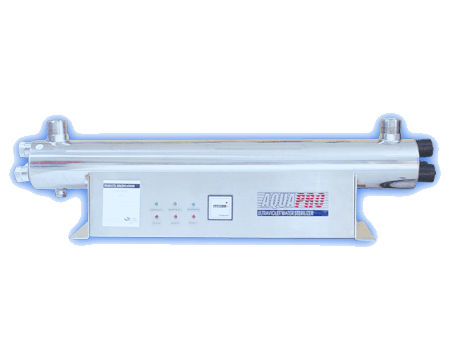

Ultraviolet water Sterilizer ( 36 GPM )

Dimension LxWxD (mm) : 980X230X280

Electrical Volts : 110/220V / 50/60HZ

Flow Rate : 36GPM

In/out Port : 1 1/2"

UV Lamp (PC) : 3

Quartz Sleeve (PC) : 3

Lamp Failure Device : YES

Ambient Temperature : 2-40oC(36-104oF) )

Lamp Watts : 40Wx3

Chamber : SS304

Accumulated Timer : 36GPM-HT, HTM

UV Light monitor : 36GPM-HTM

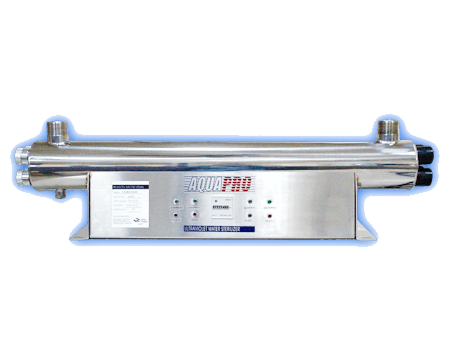

Ultraviolet water Sterilizer ( 48 GPM-HTM )

Dimension LxWxD (mm) : 980X230X280

Electrical Volts : 110/220V / 50/60HZ

Flow Rate : 48GPM

In/out Port : 1 1/2"

UV Lamp (PC) : 4

Quartz Sleeve (PC) : 4

Lamp Failure Device : YES

Ambient Temperature : 2-40oC(36-104oF) )

Lamp Watts : 40Wx4

Chamber : SS304 / SS316

Accumulated Timer : UV48GPM- HTM

UV Light monitor : UV48GPM- HTM

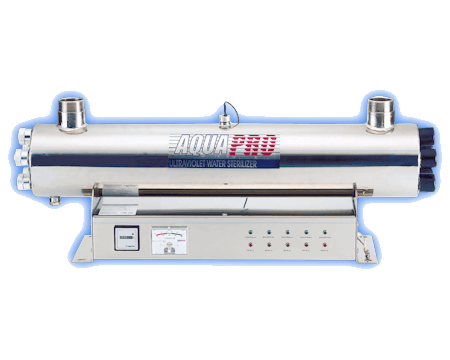

Ultraviolet water Sterilizer ( 60 GPM-HTM )

Dimension LxWxD (mm) : 980X280X280

Electrical Volts : 110/220V / 50/60HZ

Flow Rate : 60GPM

In/out Port : 2" or Flange

UV Lamp (PC) : 5

Quartz Sleeve (PC) : 5

Lamp Failure Device : YES

Ambient Temperature : 2-40oC(36-104oF) )

Lamp Watts : 40Wx5

Chamber : SS316

Accumulated Timer : YES

UV Light monitor : YES

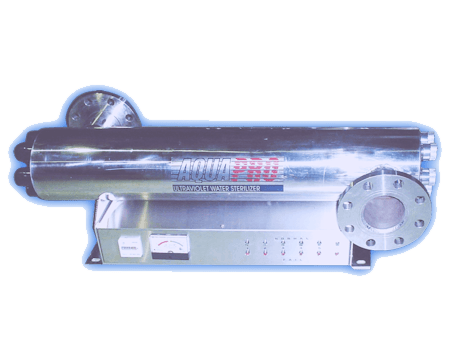

Ultraviolet water Sterilizer ( 72 GPM-HTM )

Dimension LxWxD (mm) : 980X280X280

Electrical Volts : 110/220V / 50/60HZ

Flow Rate : 72GPM

In/out Port : 2" or Flange

UV Lamp (PC) : 6

Quartz Sleeve (PC) : 6

Lamp Failure Device : YES

Ambient Temperature : 2-40oC(36-104oF) )

Lamp Watts : 40Wx6

Chamber : SS316

Accumulated Timer : Yes

UV Light monitor : Yes

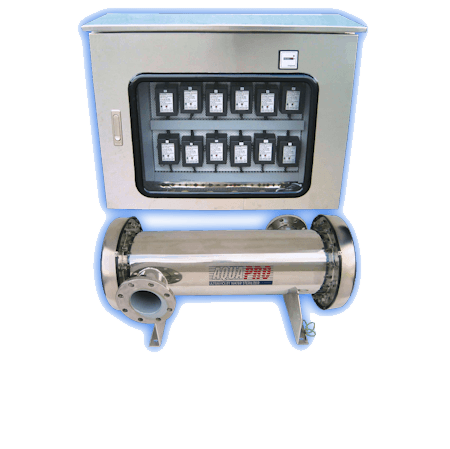

Ultraviolet water Sterilizer ( 100-120 GPM )

Dimension LxWxD (mm) : 1500X1100X560

Electrical Volts : 110/220V / 50/60HZ

Flow Rate : 100GPM, 120GPM

In/out Port : 3" Flange

UV Lamp (PC) : 10, 12

Quartz Sleeve (PC) : 10, 12

Lamp Failure Device : YES

Ambient Temperature : 2-40oC(36-104oF)

Lamp Watts : 40Wx10, x12

Chamber : SS316, SS316L

Accumulated Timer : Yes

UV Light monitor : Yes

Separate Power Box : Yes

Leakage Circuit Breaker : Yes

No Fuse Breaker : Yes

Fan : Yes

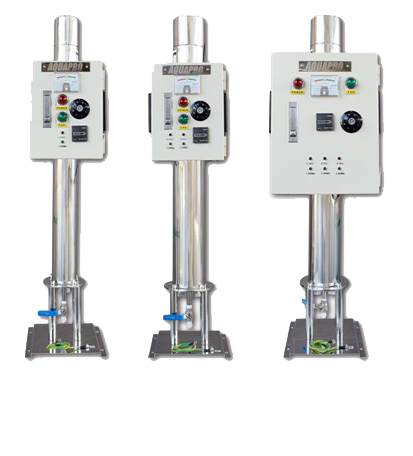

Ultraviolet water Sterilizer-Vertical Type ( 12-24-36 GPM )

Dimension LxWxD (mm) : 340X320X1170 (12GPM) 340X320X1170 (24GPM) 440X370X1170 (36GPM)

Electrical Volts : 110/220V / 50/60HZ

Flow Rate : 12, 24, 36GPM

In/out Port : 3/4", 1", 1-1/2

UV Lamp (PC) : 40Wx1, x2, x3

Quartz Sleeve (PC) : 1, 2, 3PCS

Lamp Failure Device : YES

No Fuse Breaker : Yes

Temp.Control & Fan : 20-50oc, yes

Operation Indicators : Power / Temp Normal / Fail

Chamber & Stand : SS304

Accumulated Timer : Yes

UV Light Monitor : Yes
